Apache Kafka - Publish message action ​

The Publish message action publishes a new message to a selected Kafka topic. You can select schemas in AVRO or Protobuf format for the Kafka message body and message key.

For publishing multiple messages in a single batch operation, use the Publish messages action (batch).

MESSAGE SIZE LIMITATION

The maximum message size is 50 MB.

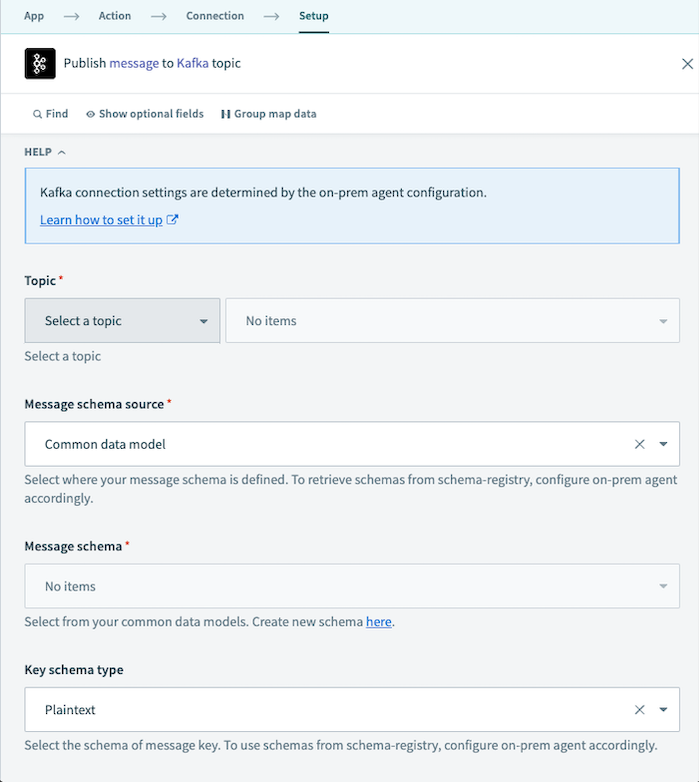

Input ​

Input fieldDescription
TopicSelect or enter the name of the topic where you plan to publish a message.
Message schema sourceDefine your message schema source. Options include:

  • Common data model - Use the schema defined in Workato
  • Schema registry - Use the schema defined in your Kafka cluster. Requires the schema.registry.url property to be configured
  • Common data model – Protobuf - Use Protobuf schemas defined in Workato
Workato supports schemas in AVRO and Protobuf format.
Message schemaSelect the message schema based on the Message schema source selection.
Protobuf message schemaSelect the Protobuf message schema from the schema registry.

This field appears when Common data model – Protobuf is selected as the message schema source.
Key schema typeConfigure the schema type for your message keys. Options include:

  • Plaintext - Use simple string keys
  • Schema registry - Use schemas from your Kafka cluster. Requires the schema.registry.url property to be configured
Workato supports schemas in AVRO and Protobuf format.
Key schemaSelect the key schema from your available schemas.

This field appears when Schema registry is selected as the key schema type.
PartitionSpecify a topic partition (index starts from 0) to explicitly publish to. If not specified, Kafka selects the partition automatically.
MessageProvide the message content.
KeyProvide the message key to be stored with the message.
Message headersProvide a list of key-value pairs to be stored with the message as headers. Header keys may be duplicated.
Key (Message headers)Enter the header key name.
Value (Message headers)Enter the header value.

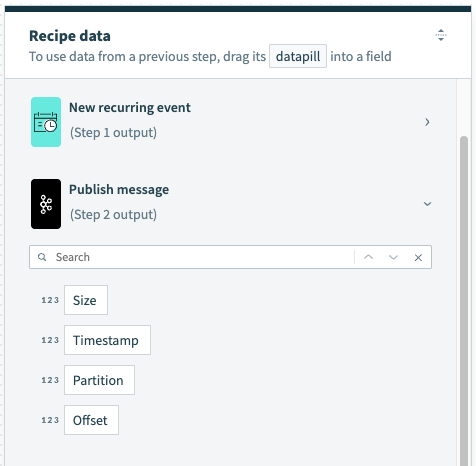

Output ​

The output contains useful information after a successful action. To use the output in downstream steps, map in the relevant datapill.

Output fieldDescription
SizeSize of the published message.
TimestampTimestamp of the published message.
PartitionPartition ID where the message was added.
OffsetThe message offset, which is a unique message identifier in Kafka.
