AgentX Support - Export API ​

You can export conversations and messages for internal analytics, GDPR compliance, or storage.

The Export API includes two endpoints:

  • Get conversations: Returns metadata and attributes for conversations.
  • Get messages: Returns individual messages exchanged between customers, agents, and the AI agent.

FEATURE AVAILABILITY

This feature is only available to users on specific pricing plans. Refer to your pricing plan and contract to learn more.

Base URL ​

Use the following base URL when making API requests to AgentX Support:

plaintext
https://api.converseapps.com

Usage limits ​

The following limits apply to the Export API for AgentX Support:

  • Rate limit: 3 requests per second per endpoint.
  • Page size: Each request returns up to 1000 records and uses cursor-based pagination.

API key ​

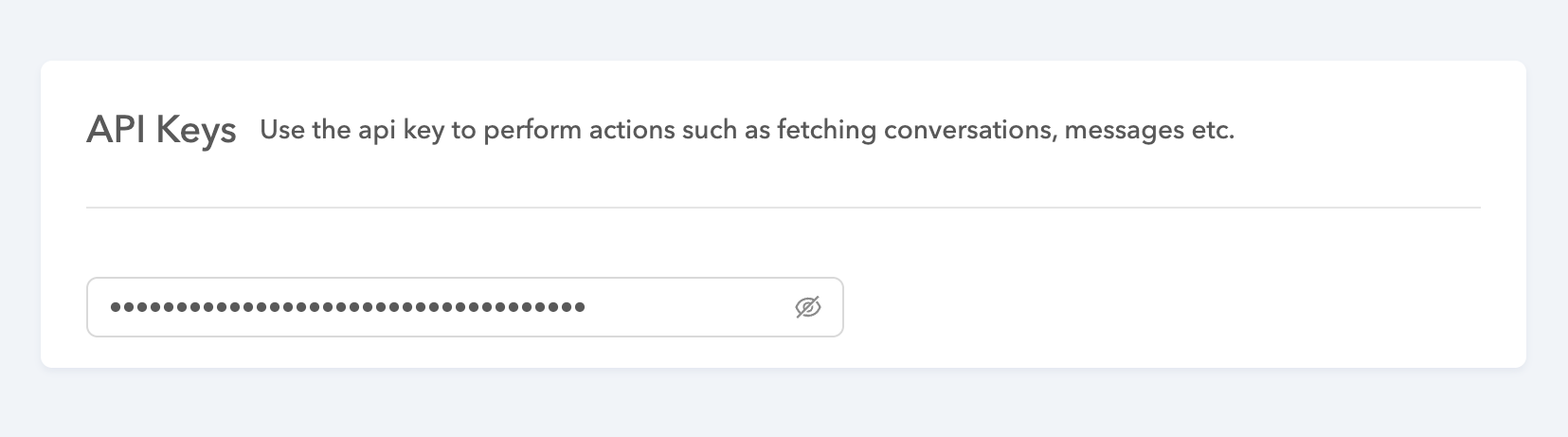

You must have an API key to access the endpoints in the Export API for AgentX Support. The API key can be found under Account > API and is only visible to site admins.

Retrieve the API keyRetrieve the API key

Get conversations ​

Returns data about customer conversations handled by your AI agent.

plaintext
GET /conversations/export/v1/conversations

Query parameters ​

ParameterTypeDescription
start_timeinteger
required		Start of the export window (Unix timestamp, in seconds).
end_timeinteger
required		End of the export window (Unix timestamp, in seconds).
bot_namestring
required		The bot name or ID of the AI agent.
per_pageinteger
optional		Number of records to return. The maximum is 1000.
cursorstring
optional		Used for pagination to fetch the next batch of results.

Sample request ​

bash
curl -X GET 'https://api.converseapps.com/conversations/export/v1/conversations?start_time=1696118400&end_time=1696550400&bot_name=r3-218210&per_page=1000' \
  -H 'x-api-key: <api_key>'

Pass the cursor value returned in the response until it is null to load the next page of results.

Response ​

json
{
    "data": [
        {
            "_id": "5c80416892d94e40a64cea7dc6406e25",
            "startTime": 1744750665,
            "locale": "en_us",
            "metadata": {
                "locale": "en_us",
                "browser_visitorType": "repeat",
                "browser_screenResolution": "1728x1117",
                "browser_localTime": 1744750695136,
                "draft": true,
                "question": "my camera is offline",
                "transcript": "User:\tmy camera is offline",
                "guideNodeCount": 5
            },
            "tags": [
                "guideInteraction"
            ],
            "userMessageCount": 6,
            "lastActionAt": "2025-04-15T20:58:15.384884"
        },
    ],
    "cursor": null
}
FieldDescription
_idUnique ID for the conversation.
startTimeThe conversation's start time.
lastActionAtTimestamp of the last update in the conversation.
localeLocale of the conversation.
tagsTags applied to the conversation. For example, resolved, informed.
metadataIncludes both system and custom metadata added during the conversation.

Get messages ​

Returns message-level data from within conversations, including message type, sender, timestamps, and content.

plaintext
GET /conversations/export/v1/messages

Query parameters ​

ParameterTypeDescription
start_timeinteger
required		Start of the export window (Unix timestamp, in seconds).
end_timeinteger
required		End of the export window (Unix timestamp, in seconds).
bot_namestring
required		The bot name or ID of the AI agent.
per_pageinteger
optional		Number of records to return. The maximum is 1000.
cursorstring
optional		Used for pagination to fetch the next batch of results.
conversation_idstring
optional		Filter messages for a specific conversation.

Sample request ​

bash
curl -X GET 'https://api.converseapps.com/conversations/export/v1/messages?start_time=1696118400&end_time=1696550400&bot_name=r3-218210&per_page=1000' \
  -H 'x-api-key: <api_key>'

Pass the cursor value returned in the response until it is null to load the next page of results.

Response ​

json
{
  "data": [
    {
      "_id": "aee4189e0429449a9c8c3bba88bf140c",
      "time": 1744651778.652,
      "type": "Question",
      "outMsg": {
        "steps": [
          {
            "text": "Hello 👋 I am a virtual assistant. How can I help you?"
          }
        ]
      },
      "conversationId": "7eee0bbc78414f649a311c7ce4a87ead"
    },
    {
      "_id": "33f34335-bd8a-41a7-8ce1-73542fcc2b9c",
      "time": 1744651783,
      "type": "UserInput",
      "userInput": "Tell me about Comfort Headphones",
      "conversationId": "7eee0bbc78414f649a311c7ce4a87ead"
    },
    {
      "_id": "4514b1a468394c9f986ac8ffdad577ad",
      "time": 1744651793.839,
      "type": "Question",
      "outMsg": {
        "steps": [
          {
            "text": "Here are the details for Comfort Headphones:\n\n💲 Price: $89.99\n📦 In Stock: Yes"
          },
          {
            "text": "Did that answer your question?"
          }
        ],
        "options": [
          { "txt": "Yes" },
          { "txt": "No" }
        ]
      },
      "conversationId": "7eee0bbc78414f649a311c7ce4a87ead"
    }
  ],
  "cursor": null
}
FieldDescription
_idUnique ID of the message.
timeTimestamp when the message was sent.
conversationIdID of the conversation this message belongs to.
typeType of message. For example, UserInput, BotMessage.
outMsgContent of the message from the AI agent.
userActionTypeType of user action. This is present only for UserInput messages.
userInputContent of user input. For example, a message text, quick reply, or form submission.

Last updated:
